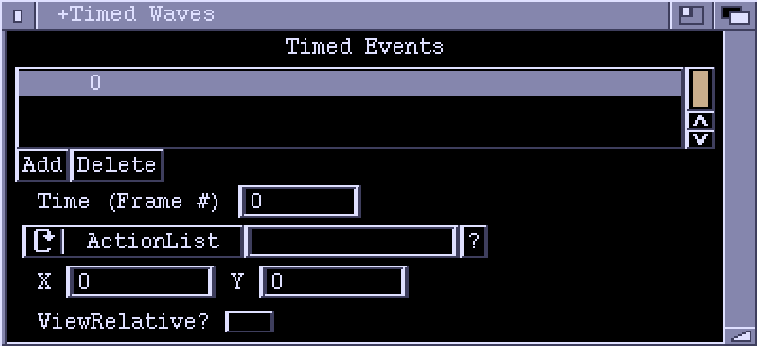

TimedAttackWaves Window

This window lets you edit a TimedAttackWaves chunk. Basically, this is just a list of events set up to occur at specific times.

Timed Events
A list of events, sorted by time values.

Add
Add a new event.

Delete
Delete the highlighted event.

Time
The time value of the event. This is given as a frame number. For a full framerate game there are 50 frames per second for PAL machines, and 60 frames per second on NTSC. Half framerate games run at 25 (PAL) or 30 frames per second (NTSC). If a new value is entered here, the event will be moved to the appropriate place in the list.

ActionList/InitBadDude/Formation
The cycle gadget determines the type of the event. For 'ActionList' events the string gadget holds the name of the ActionList to execute (it will be executed in a global context). For 'InitBadDude' events, a new BadDude object will be created at the given position (see below) and the specified ActionList will be executed upon it. 'Formation' events start a Formation at the given position.

X, Y
X,Y coordinates of event, if it is of 'InitBadDude' or 'Formation' type.
These values have no meaning for 'ActionList' events.

ViewRelative
If this checkbox is ticked, then X and Y are taken as offsets from the current position of the view (view relative coordinates).
If clear, the X,Y position is taken as relative to the background map (absolute coordinates).
